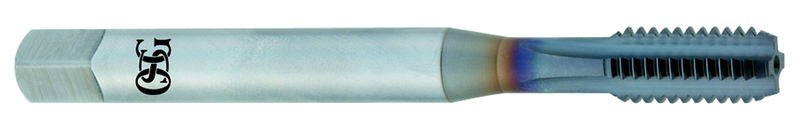

7/16-20 Dia. - H3 - 4 FL - VC10 - TiCN - Bottoming Straight Flute Tap

Item #: TP291005701208
Manufacturer: OSG USA, Inc.
Mfg #: 1005701208

Technical Specifications:
•Brand Name: OSG USA, Inc. •Chamfer Length: 1.5P - 2P •Class of Fit: H3 •Coating: TiCN •For Use With: Cast Iron / Aluminum •List No.: 10057 •Material: VC-10 •Number of Flutes: 4 •Overall Length: 3-5/32 •Size: 7/16-20 •Size Type: Inch •Special Feature: Coolant Thru •Style: Bottoming •Thread Length: 1-7/16 •Thread Type: UNF •Trade Name: OSG EXOTAP ® DC OIL Taps •Type: Straight Flute

Description:
•EXOTAP DC Oil Bottom Taps •Coolant thru •TiCN Coated •Designed for tapping cast aluminum and cast iron. Provides excellent tool life. Recommended use with synchronized spindle.

Shipping Info:
•Actual Weight - .0750 •Dimensions - Height: .650 Length: 4.95 Width: .700
