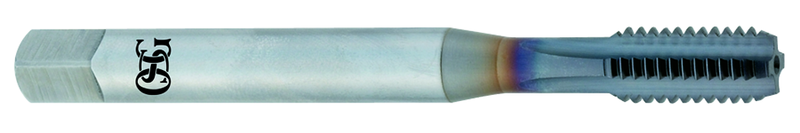

3/8-24 Dia. - H3 - 4 FL - VC10- TiCN - Bottoming - Straight Flute Tap

Item #: TP291005600908
Manufacturer: OSG USA, Inc.
Mfg #: 1005600908

Technical Specifications:
•Brand Name: OSG USA, Inc. •Chamfer Length: 1.5P - 2P •Class of Fit: H3 •Coating: TiCN •List No.: 10056 •Material: VC-10 •Number of Flutes: 4 •Overall Length: 2-15/16 •Size: 3/8-24 •Size Type: Inch •Style: Bottoming •Thread Length: 1-1/4 •Thread Type: UNF •Trade Name: OSG EXOTAP ® DC Taps •Type: Straight Flute

Description:
•OSG List No. 10056

Shipping Info:
•Actual Weight - .0700 •Dimensions - Height: .550 Length: 3.45 Width: .550
