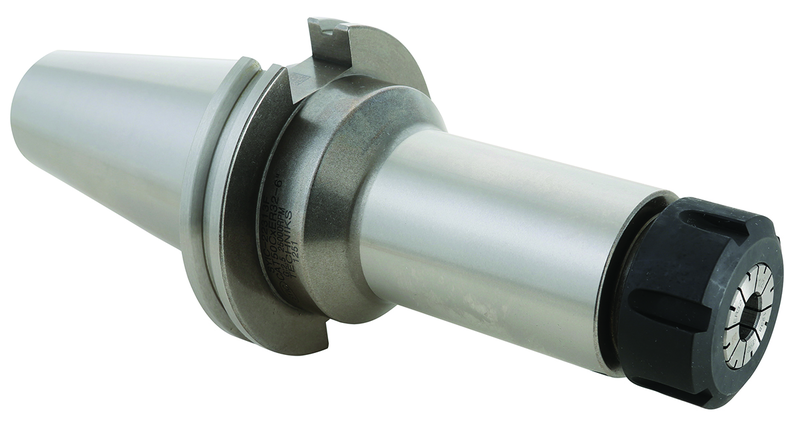

CAT50 x ER32 x 8 w/ Coolflex - Collet Chuck - Eagle Tool & Supply

CAT50 x ER32 x 8 w/ Coolflex - Collet Chuck


Item #: TE1222317F
Manufacturer: Techniks
Mfg #: 22317F

Technical Specifications:
*Brand Name: Techniks *Capacity: ER32 *Chuck Size: CAT50 *Collets Included: No *Coolant Supply: Coolant-thru Flange (DIN B) or thru Spindle with Coolant Capable Rentention Knob, sold separately *Head Length/Projection: 8 *Model Number: 22317F *Mount: CAT50 *Nut Diameter: 1.97 *Overall Length: 12 *Size/Range: .043 - .827 *Spindle Interface: CAT50 *Weight: 11.4 lbs *Wrench Number: TE1204616

Description:
*Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B * Simply remove two stop screws for DIN B *The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket *Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report *

Shipping Info:
*Actual Weight - 11.4000 *Dimensions - Height: 13.0 Length: 5.00 Width: 5.00
$388.51
