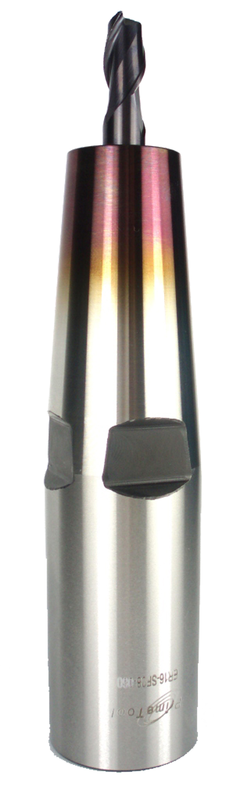

IR20-SM16-100 Shell Mill Holder

Item #: SG81SER20016100
Manufacturer: Prime Tool
Mfg #: T12ER20A13

Technical Specifications:
*Base Coupling Size: IR20 *Brand Name: Prime Tool *Key Width: 0.315 / 8mm *Length: 3.937 / 100mm *Overall Length: 6.102 / 155mm *Pilot Diameter: 0.630 / 16mm *Pilot Length: 0.669 / 17mm *Shell Mill Pilot Size: SM16 *Thread Size: M8 *Weight: 3.9242 lbs

Description:
*Precision Ground Pilot and Threads *Shaft Tolerance: H3 *Case Hardness: HRC 56 +/-2 *Seat Runout: 0.005mm (0.0002") *Balance: G2.5 @ 25,000 RPM

Shipping Info:
*Actual Weight - 3.9242
