IR08S-SF06-100-3° Shrink Fit Chuck - Eagle Tool & Supply

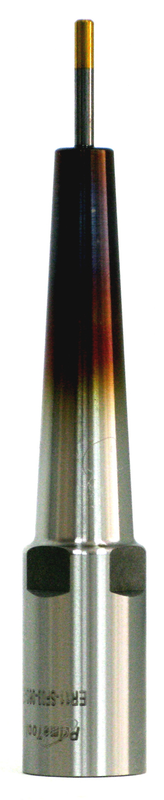

IR08S-SF06-100-3° Shrink Fit Chuck


Item #: SG81ER824006100
Manufacturer: Prime Tool
Mfg #: T12ER8SA24

Technical Specifications:
*Base Coupling OD: 0.630 / 16mm *Base Coupling Size: IR08S *Brand Name: Prime Tool *Dimension D1: 0.630 / 16mm *ER Collet Nut: SF06 *Front OD: 0.472 / 12mm *Length: 3.937 / 100mm *Neck Length: 1.496 / 38mm *Overall Length: 4.724 / 120mm *Shank Size: 0.236 / 6mm *Wrench: T07IR8S01

Description:
*Precision Ground Pilot and Threads *Shaft Tolerance: H3 *Case Hardness: HRC 52 +/-2 *Seat Runout 0.003mm (0.00012") *Balance: G2.5 @ 25,000 RPM

Shipping Info:
*Actual Weight - .2094
$227.14
