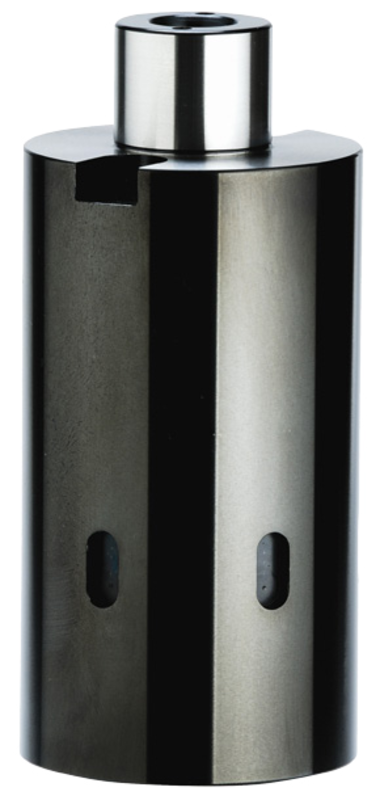

IR40-SM60-060 Shell Mill Holder

Item #: SG81ER40060060
Manufacturer: Prime Tool
Mfg #: T12ER40A13

Technical Specifications:
*Base Coupling OD: 2.480 / 63mm *Base Coupling Size: IR40 *Body Length: 2.736 / 69.5mm *Brand Name: Prime Tool *Dimension D1: 5.079 / 129mm *Key Height: 0.492 / 12.5mm *Key Width: 1.00 / 25.4mm *Length: 2.362 / 60mm *Overall Length: 5.118 / 130mm *Pilot Diameter: 2.362 / 60mm *Pilot Length: 1.575 / 40mm *Shell Mill Pilot Size: SM60 *Thread Size: M16*4 *Weight: 6.92251 lbs

Description:
*Precision Ground Pilot and Threads *Shaft Tolerance: H3 *Case Hardness: HRC 56 +/-2 *Seat Runout: 0.005mm (0.0002") *Balance: G2.5 @ 25,000 RPM

Shipping Info:
*Actual Weight - 6.9225
