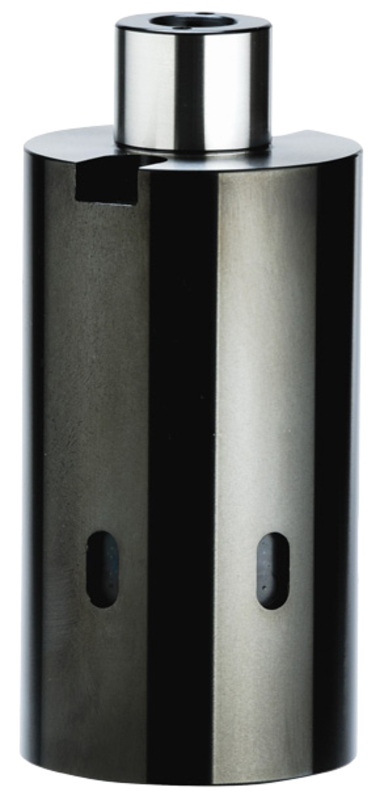

IR40-SM32-100 Shell Mill Holder

Item #: SG81ER40032100
Manufacturer: Prime Tool
Mfg #: T12ER40A13

Technical Specifications:
*Base Coupling OD: 2.480 / 63mm *Base Coupling Size: IR40 *Body Length: 4.311 / 109.5mm *Brand Name: Prime Tool *Dimension D1: 3.071 / 78mm *Key Height: 0.276 / 7mm *Key Width: 0.551 / 14mm *Length: 3.937 / 100mm *Overall Length: 6.693 / 170mm *Pilot Diameter: 1.260 / 32mm *Pilot Length: 0.945 / 24mm *Shell Mill Pilot Size: SM32 *Thread Size: M16 *Weight: 7.23116 lbs

Description:
*Precision Ground Pilot and Threads *Shaft Tolerance: H3 *Case Hardness: HRC 56 +/-2 *Seat Runout: 0.005mm (0.0002") *Balance: G2.5 @ 25,000 RPM

Shipping Info:
*Actual Weight - 7.2311
