IR11-SF08-100-3° Shrink Fit Chuck - Eagle Tool & Supply

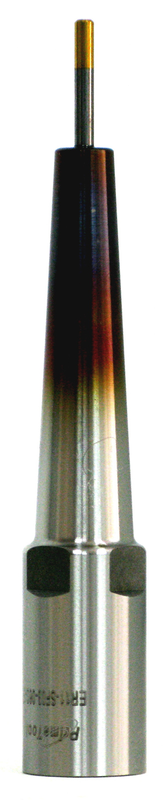

IR11-SF08-100-3° Shrink Fit Chuck


Item #: SG81ER11008100
Manufacturer: Prime Tool
Mfg #: T12ER11A24

Technical Specifications:
*Base Coupling OD: 0.748 / 19mm *Base Coupling Size: IR11 *Brand Name: Prime Tool *Dimension D1: 0.748 / 19mm *ER Collet Nut: SF08 *Front OD: 0.551 / 14mm *Length: 3.937 / 100mm *Neck Length: 1.850 / 47mm *Overall Length: 5.315 / 135mm *Shank Size: 0.315 / 8mm *Weight: .46305 lbs *Wrench: T07ER1101

Description:
*Precision Ground Pilot and Threads *Shaft Tolerance: H3 *Case Hardness: HRC 52 +/-2 *Seat Runout 0.003mm (0.00012") *Balance: G2.5 @ 25,000 RPM

Shipping Info:
*Actual Weight - .4630
$227.14
