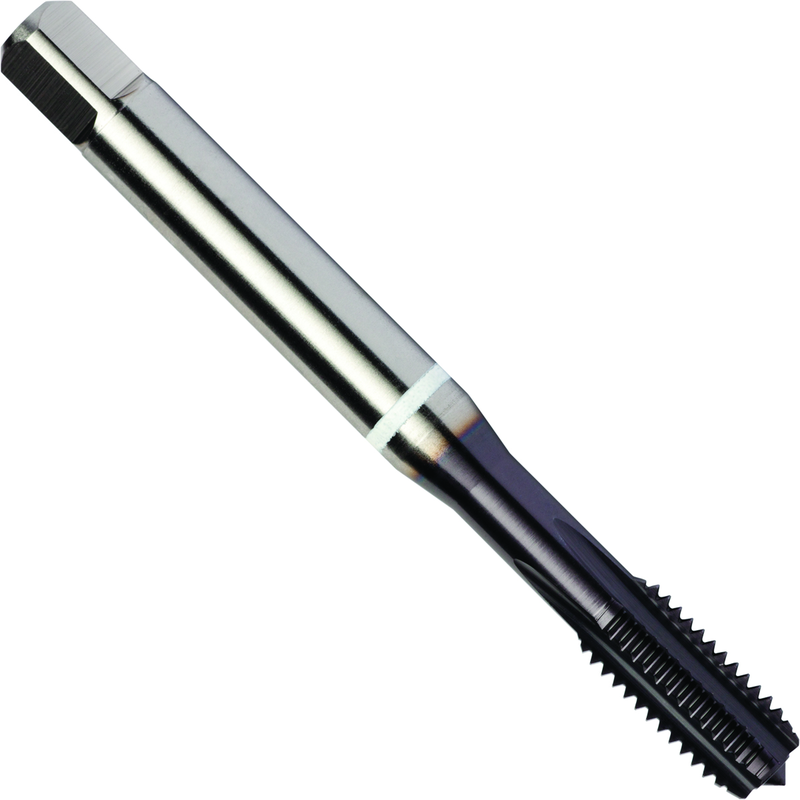

7/8-14 4FL H6 CO SBOTT

Item #: DS047350230
Manufacturer: Dormer
Mfg #: 7350230

Technical Specifications:
•Brand Name: Dormer •Class of Fit: H6 •Coating: TiAlN/Top •List No.: E914 •Material: HSS-E-PM •Model Number: 7350230 •Number of Flutes: 4 •Overall Length: 4.921 •Size: 7/8-14 •Style: Semi-Bottoming •Thread Length: .906 •Thread Type: UNF •Threads Per Inch: 14

Description:
•TiAlN top coating •Excellent performance when threading both through and blind holes in short chipping materials •Internal coolant with axial outlet - Reduces interruptions of the production process by providing optimum chip evacuation in both horizontal and vertical blind hole machining

Shipping Info:
•Actual Weight - .4920 •Dimensions - Height: 1.25 Length: 5.12 Width: 1.25
