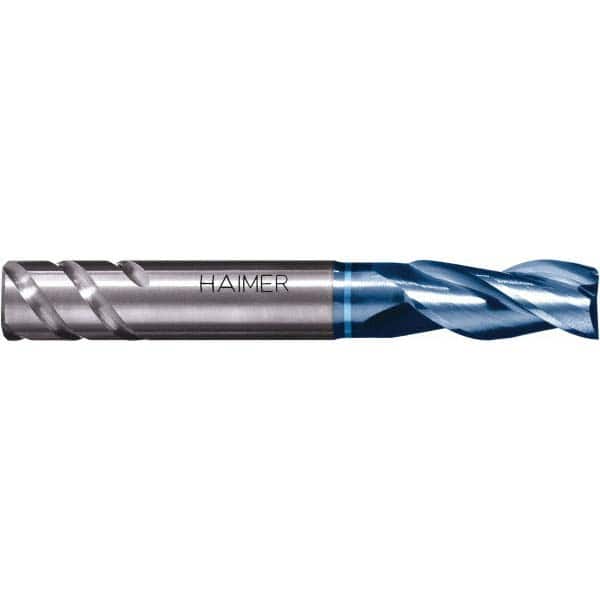

6mm Diam 3-Flute Variable Helix Solid Carbide Square Roughing & Finishing End Mill AlTiN Finish, 13mm LOC, 58mm OAL, 6mm Shank Diam
Item #: 52175783
Brand: HAIMER
Model #: F1003NNL0600SAA
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2362 |
| Mill Diameter (mm) | 6.00 |
| End Type | Square |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (mm) | 13.0000 |
| Length of Cut (Decimal Inch) | 0.5118 |
| Shank Diameter (mm) | 6 |
| Overall Length (mm) | 58 |
| Centercutting | Center Cutting |
| Extended Reach | ExtendedReach |
| Helix Angle | Variable |
| Material Grade | Submicron |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Overall Length Tolerance (mm) | +0.05/-0.05 |
