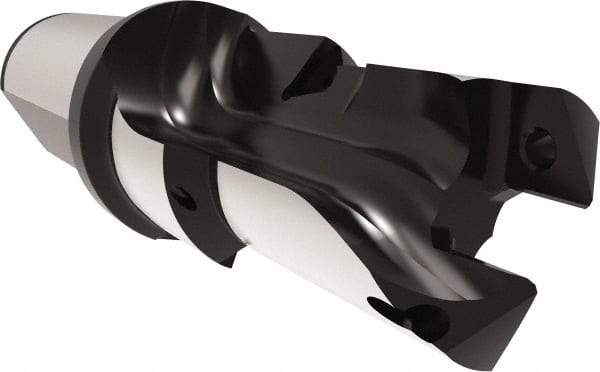

Allied Machine and Engineering - 26 to 28.99mm Diam, Straight Shank, 31.75mm Body Shank Diam, Combo Chamfer and Countersink Drill - TCMT 110204 Insert, 130.97mm OAL
Item #: 43937051
Brand: Allied Machine and Engineering
Model #: 60126C45-32FM
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 28.99 |
| Maximum Drill Diameter (Decimal Inch) | 1.1413 |
| Minimum Drill Diameter (mm) | 26.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.0236 |
| Body Shank Diameter (mm) | 31.75 |
| Body Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 1 |
| Insert Style | TCMT 110204 |
| Body Diameter (mm) | 34.13 |
| Body Diameter (Decimal Inch) | 1.3438 |
| Overall Length (mm) | 130.97 |
| Overall Length (Decimal Inch) | 5.1563 |
| Insert Holding Method | Screw |
| Shank Length (mm) | 57.94 |
| Shank Length (Decimal Inch) | 2.2813 |
| Through Coolant | Through Coolant |
| Series | 26; GEN3SYS; GEN3SYS XT |
