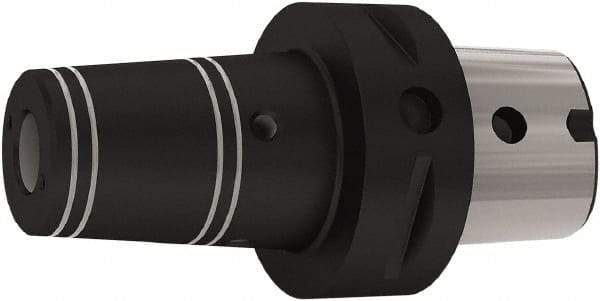

Seco - 63/64" Shank Diam, 63/64" Hole Diam, C6 Modular Connection Shrink Fit Tool Holder & Adapter - 90mm Projection, 44mm Nose Diam, Through Coolant
Item #: 30139851
Brand: Seco
Model #: 92425
Exact Tooling IR#: 04
Features and Benefits
Modular connections are used in compatible modular tool holder systems and allow for tool changes without removing the tool shank from the machine spindle.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Shank Diameter (Inch) | 0.9843 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Modular Connection Size | C6 |
| Shank Diameter (mm) | 25.00 |
| Hole Diameter (Decimal Inch) | 0.9843 |
| Hole Diameter (mm) | 25.00 |
| Hole Diameter (Inch) | 0.9843 |
| Projection (mm) | 90.00 |
| Projection (Decimal Inch) | 3.5433 |
| Nose Diameter (mm) | 44.00 |
| Nose Diameter (Decimal Inch) | 1.7323 |
| Through Coolant | Through Coolant |
